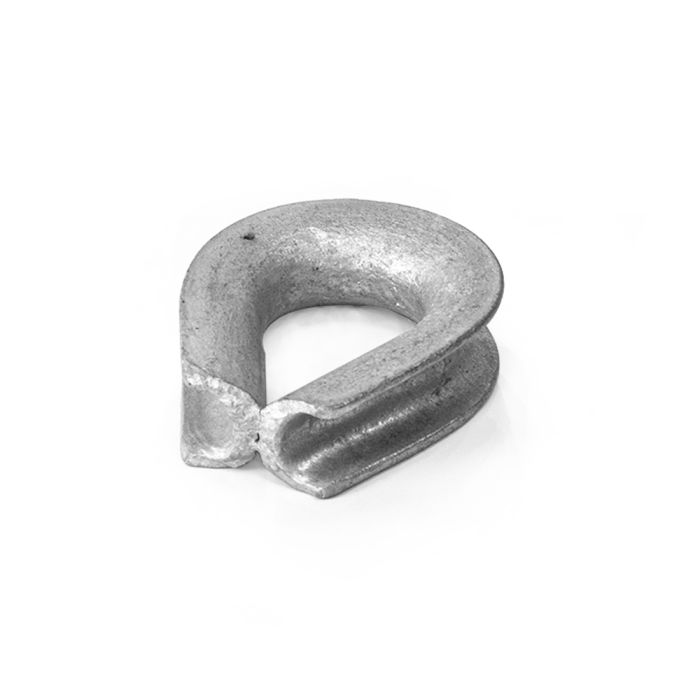

Lanová očnice Green Pin G-6120
Zesílená a zkrácená lanová očnice G-6120 pro ocelová lana o průměru 8 až 64 mm
Žárově pozinkovaná
Cerifikáty EN 102 04 2.1, CE prohlášení o shodě
0 Kč

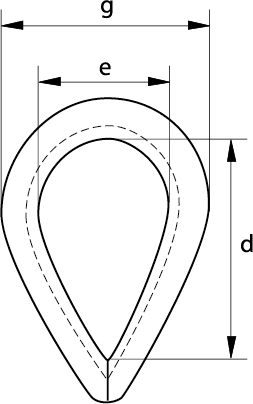

| Katalogové číslo | Průměr lana | a | b | c | d | e | f | g | Hmotnost/100 ks |
| mm | mm | mm | mm | mm | mm | mm | mm | kg | |
| KCPRF080 | 8 | 9 | 13 | 51 | 35 | 22 | 4 | 44 | 0,5 |
| KCPRF100 | 10 | 11 | 15 | 64 | 47 | 30 | 4 | 54 | 0,8 |
| KCPRF120 | 12 | 13 | 18 | 76 | 57 | 35 | 5 | 62 | 1,4 |
| KCPRF140 | 14 | 15 | 21 | 89 | 65 | 45 | 6 | 76 | 2,8 |
| KCPRF160 | 16 | 18 | 22 | 102 | 75 | 50 | 6 | 83 | 3,0 |
| KCPRF180 | 18 | 20 | 28 | 114 | 85 | 53 | 7 | 91 | 4,8 |
| KCPRF200 | 20 | 22 | 30 | 127 | 94 | 60 | 8 | 102 | 8,0 |
| KCPRF220 | 22 | 24 | 31 | 140 | 107 | 65 | 9 | 110 | 10,0 |
| KCPRF240 | 24 | 26 | 34 | 152 | 114 | 70 | 9,5 | 118 | 15,0 |
| KCPRF280 | 28 | 30 | 39 | 178 | 130 | 80 | 10 | 134 | 22,0 |
| KCPRF320 | 32 | 34 | 41 | 203 | 157 | 100 | 10 | 162 | 25,0 |
| KSPRF360 | 36 | 38 | 48 | 229 | 175 | 115 | 11 | 182 | 32,0 |
| KSPRF400 | 40 | 42 | 51 | 254 | 198 | 120 | 12 | 188 | 46,0 |
| KSPRF440 | 44 | 46 | 62 | 280 | 214 | 130 | 14 | 210 | 66,0 |
| KSPRF500 | 50 | 53 | 65 | 305 | 220 | 140 | 18 | 248 | 77,0 |
| KSPRF560 | 56 | 57 | 68 | 356 | 245 | 150 | 23 | 262 | 80,0 |
| KSPRF640 | 64 | 67 | 85 | 407 | 286 | 185 | 20 | 280 | 130,0 |
